LLVM 🐉 in HPC 🧮 – language frontends, GPU 🎨 backends, and vendor compilers

Vedran Miletić

HPC application expert, Max Planck Computing and Data Facility (MPCDF)

MPG MPCDF logos

LLVM Meetup in Munich – October 28th, 2025

Short background

  • former postdoc (Heidelberg Institute for Theoretical Studies)
  • former junior professor (University of Rijeka, Croatia)
  • currently mainly working with software running on AMD Instinct MI300A APUs at Max Planck, but also other NVIDIA- and Intel-powered machines

MPCDF supercomputer Viper, Garching

Image source: Viper-GPU User Guide

Viper bg

Languages for HPC applications

bg left:45%

  • C, C++, Fortran... Python, Julia, R...
  • OpenCL: portability over ease of use, features, and performance
  • OpenMP: ease of use over performance
  • CUDA/HIP: full hardware capability
  • SYCL: (hopefully) portable full hardware capability

Image source: Wikimedia Commons

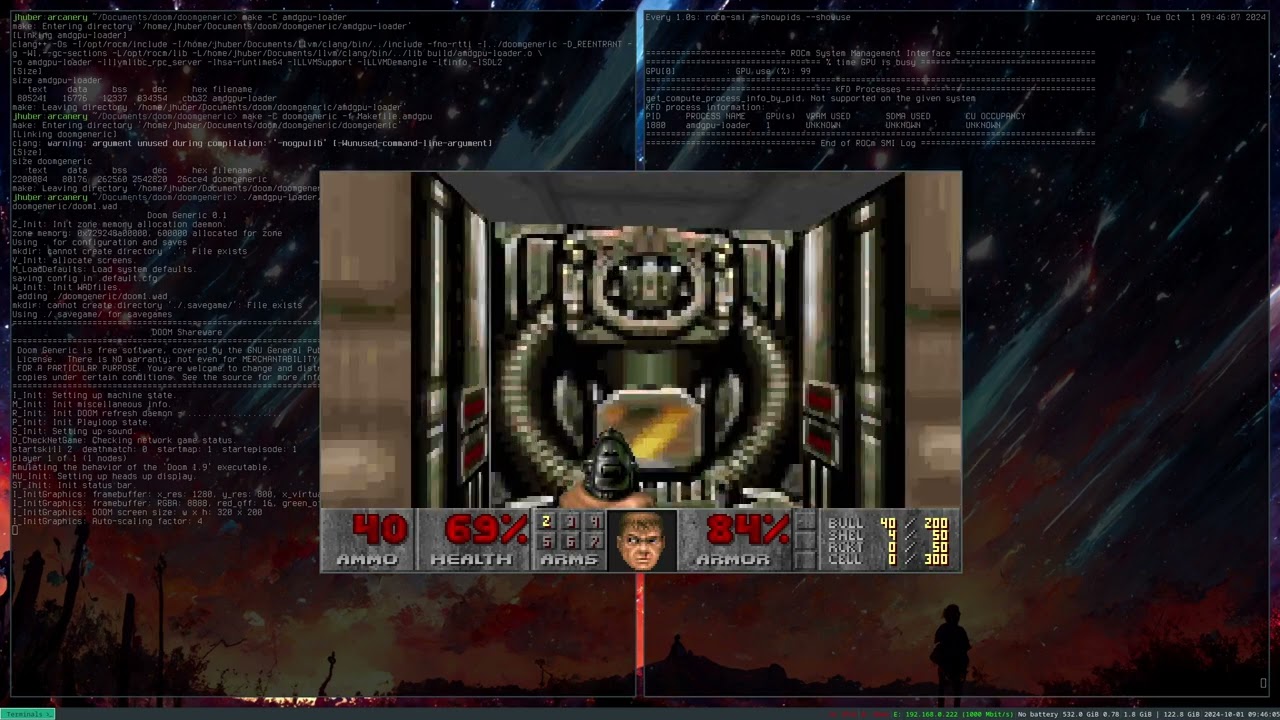

Why don't GPUs just use C/C++?

bg right:55%

Image source: YouTube

Backends

  • NVPTX
  • AMDGPU
  • (SPIR-V)
  • (DirectX)
  • common features: GPU-specific intrinsics, address space management, kernel metadata

GPU bg left:63%

Image source: Wikimedia Commons

NVPTX backend

From Wikipedia Parallel Thread Execution page:

Parallel Thread Execution (PTX or NVPTX) is a low-level parallel thread execution virtual machine and instruction set architecture used in Nvidia's Compute Unified Device Architecture (CUDA) programming environment. The LLVM-based Nvidia CUDA Compiler (NVCC) translates code written in OpenCL C and CUDA C/C++ into PTX instructions (an IL), and the graphics driver contains a compiler which translates PTX instructions into executable binary code, which can run on the processing cores of Nvidia graphics processing units (GPUs).

AMDGPU backend

  • supports (R600), GCN, RDNA, and CDNA generations
  • assumptions for GFX942/Instinct MI300A:
  • Each agent has multiple shader arrays (SA).
  • Each SA has multiple compute units (CU).
  • Each CU has multiple SIMDs that execute wavefronts.
  • The wavefronts for a single work-group are executed in the same CU but may be executed by different SIMDs.
  • Each CU has a single LDS memory shared by the wavefronts of the work-groups executing on it.
  • (...)

AMDGPU backend: features

From llvm/lib/Target/AMDGPU/AMDGPU.td:

// Unless +-flat-for-global is specified, turn on FlatForGlobal for
// all OS-es on VI and newer hardware to avoid assertion failures due
// to missing ADDR64 variants of MUBUF instructions.
// FIXME: moveToVALU should be able to handle converting addr64 MUBUF
// instructions.

def FeatureFlatForGlobal : SubtargetFeature<"flat-for-global",
  "FlatForGlobal",
  "true",
  "Force to generate flat instruction for global"
>;

AMDGPU backend: generations

def FeatureGFX9 : GCNSubtargetFeatureGeneration<"GFX9",
  "gfx9",
  [FeatureFP64,
   FeatureWavefrontSize64, FeatureFlatAddressSpace,
   FeatureGCN3Encoding, FeatureCIInsts, Feature16BitInsts,
   FeatureSMemRealTime, FeatureScalarStores, FeatureInv2PiInlineImm,
   FeatureApertureRegs, FeatureGFX9Insts, FeatureVOP3P, FeatureVGPRIndexMode,
   FeatureFastFMAF32, FeatureDPP, FeatureIntClamp,
   FeatureSDWA, FeatureSDWAOmod, FeatureSDWAScalar, FeatureSDWASdst,
   FeatureFlatInstOffsets, FeatureFlatGlobalInsts, FeatureFlatScratchInsts,
   FeatureAddNoCarryInsts, FeatureGFX8Insts, FeatureGFX7GFX8GFX9Insts,
   FeatureScalarFlatScratchInsts, FeatureScalarAtomics, FeatureR128A16,
   FeatureA16, FeatureSMemTimeInst, FeatureFastDenormalF32, FeatureSupportsXNACK,
   FeatureUnalignedBufferAccess, FeatureUnalignedScratchAccess,
   FeatureUnalignedDSAccess, FeatureNegativeScratchOffsetBug, FeatureGWS,
   FeatureDefaultComponentZero,FeatureVmemWriteVgprInOrder, FeatureMemToLDSLoad
  ]
>;

AMDGPU backend: lowering 1/2

From llvm/lib/Target/AMDGPU/AMDGPUISelLowering.cpp:

AMDGPUTargetLowering::AMDGPUTargetLowering(const TargetMachine &TM,
                                           const AMDGPUSubtarget &STI)
    : TargetLowering(TM), Subtarget(&STI) {
  // ...
  setOperationAction(
      {ISD::FLOG, ISD::FLOG10, ISD::FEXP, ISD::FEXP2, ISD::FEXP10}, MVT::f32,
      Custom);
  // ...
  setOperationAction({ISD::FLOG10, ISD::FLOG, ISD::FEXP, ISD::FEXP10}, MVT::f16,
                     Custom);
  // ..
}

AMDGPU backend: lowering 2/2

SDValue AMDGPUTargetLowering::LowerOperation(SDValue Op,
                                             SelectionDAG &DAG) const {
  switch (Op.getOpcode()) {
  default:
    // ...
  case ISD::FLOG10:
    return LowerFLOGCommon(Op, DAG);
  // ...
  }
}

AMDGPU backend: logarithm 1/4

SDValue AMDGPUTargetLowering::LowerFLOGCommon(SDValue Op,
                                              SelectionDAG &DAG) const {
  // ...
  const auto &Options = getTargetMachine().Options;
  if (VT == MVT::f16 || Flags.hasApproximateFuncs()) {
    if (VT == MVT::f16 && !Subtarget->has16BitInsts()) {
      // Log and multiply in f32 is good enough for f16.
      X = DAG.getNode(ISD::FP_EXTEND, DL, MVT::f32, X, Flags);
    }
    SDValue Lowered = LowerFLOGUnsafe(X, DL, DAG, IsLog10, Flags);
    if (VT == MVT::f16 && !Subtarget->has16BitInsts()) {
      return DAG.getNode(ISD::FP_ROUND, DL, VT, Lowered,
                         DAG.getTargetConstant(0, DL, MVT::i32), Flags);
    }
    return Lowered;
  }
  // ...

AMDGPU backend: logarithm 2/4

SDValue AMDGPUTargetLowering::LowerFLOGUnsafe(SDValue Src, const SDLoc &SL,
                                              SelectionDAG &DAG, bool IsLog10,
                                              SDNodeFlags Flags) const {
  EVT VT = Src.getValueType();
  unsigned LogOp =
      VT == MVT::f32 ? (unsigned)AMDGPUISD::LOG : (unsigned)ISD::FLOG2;

  double Log2BaseInverted =
      IsLog10 ? numbers::ln2 / numbers::ln10 : numbers::ln2;

AMDGPU backend: logarithm 3/4

  if (VT == MVT::f32) {
    auto [ScaledInput, IsScaled] = getScaledLogInput(DAG, SL, Src, Flags);
    if (ScaledInput) {
      SDValue LogSrc = DAG.getNode(AMDGPUISD::LOG, SL, VT, ScaledInput, Flags);
      SDValue ScaledResultOffset =
          DAG.getConstantFP(-32.0 * Log2BaseInverted, SL, VT);

      SDValue Zero = DAG.getConstantFP(0.0f, SL, VT);

      SDValue ResultOffset = DAG.getNode(ISD::SELECT, SL, VT, IsScaled,
                                         ScaledResultOffset, Zero, Flags);

      SDValue Log2Inv = DAG.getConstantFP(Log2BaseInverted, SL, VT);

      if (Subtarget->hasFastFMAF32())
        return DAG.getNode(ISD::FMA, SL, VT, LogSrc, Log2Inv, ResultOffset,
                           Flags);
      SDValue Mul = DAG.getNode(ISD::FMUL, SL, VT, LogSrc, Log2Inv, Flags);
      return DAG.getNode(ISD::FADD, SL, VT, Mul, ResultOffset);
    }
  }

AMDGPU backend: logarithm 4/4

  SDValue Log2Operand = DAG.getNode(LogOp, SL, VT, Src, Flags);
  SDValue Log2BaseInvertedOperand = DAG.getConstantFP(Log2BaseInverted, SL, VT);

  return DAG.getNode(ISD::FMUL, SL, VT, Log2Operand, Log2BaseInvertedOperand,
                     Flags);
}

AMDGPU backend: test 1/2

From llvm/test/CodeGen/AMDGPU/llvm.log10.ll:

GFX900-SDAG-LABEL: s_log10_f32:
GFX900-SDAG:       ; %bb.0:
GFX900-SDAG-NEXT:    s_load_dword s6, s[4:5], 0x2c
GFX900-SDAG-NEXT:    s_load_dwordx2 s[0:1], s[4:5], 0x24
GFX900-SDAG-NEXT:    v_mov_b32_e32 v0, 0x800000
GFX900-SDAG-NEXT:    v_mov_b32_e32 v1, 0x411a209b
GFX900-SDAG-NEXT:    v_mov_b32_e32 v2, 0
GFX900-SDAG-NEXT:    s_waitcnt lgkmcnt(0)
GFX900-SDAG-NEXT:    v_cmp_lt_f32_e32 vcc, s6, v0
GFX900-SDAG-NEXT:    s_and_b64 s[2:3], vcc, exec
GFX900-SDAG-NEXT:    s_cselect_b32 s2, 32, 0
GFX900-SDAG-NEXT:    v_cndmask_b32_e32 v0, 0, v1, vcc
GFX900-SDAG-NEXT:    v_mov_b32_e32 v1, s2
GFX900-SDAG-NEXT:    v_ldexp_f32 v1, s6, v1
; ...

AMDGPU backend: test 2/2

GFX900-SDAG-NEXT:    v_log_f32_e32 v1, v1
GFX900-SDAG-NEXT:    s_mov_b32 s2, 0x3e9a209a
GFX900-SDAG-NEXT:    s_mov_b32 s3, 0x3284fbcf
GFX900-SDAG-NEXT:    v_mul_f32_e32 v3, 0x3e9a209a, v1
GFX900-SDAG-NEXT:    v_fma_f32 v4, v1, s2, -v3
GFX900-SDAG-NEXT:    v_fma_f32 v4, v1, s3, v4
GFX900-SDAG-NEXT:    s_mov_b32 s2, 0x7f800000
GFX900-SDAG-NEXT:    v_add_f32_e32 v3, v3, v4
GFX900-SDAG-NEXT:    v_cmp_lt_f32_e64 vcc, |v1|, s2
GFX900-SDAG-NEXT:    v_cndmask_b32_e32 v1, v1, v3, vcc
GFX900-SDAG-NEXT:    v_sub_f32_e32 v0, v1, v0
GFX900-SDAG-NEXT:    global_store_dword v2, v0, s[0:1]
GFX900-SDAG-NEXT:    s_endpg

Vendor compilers: AMD

AMD height:100px

Image source: Wikimedia Commons

Vendor compilers: Intel

Intel height:100px

  • a.k.a. IntelLLVM, Intel's fork of LLVM
  • oneAPI DPC++ compiler: C, C++, SYCL, OpenMP offload (FOSS)
  • custom Fortran compiler (not FOSS)
  • oneAPI Math Kernel Library (oneMKL) (not FOSS)
    • has a FOSS implementation named oneMath

Image source: Wikimedia Commons

Vendor compilers: NVIDIA

NVIDIA height:100px

  • NVIDIA HPC compilers, successor to the PGI compilers, based on LLVM
  • C, C++, Fortran
    • replace GCC's role in the CUDA stack
  • CUDA, OpenACC, OpenMP
  • not FOSS

Image source: Wikimedia Commons

Why should the application developers care about the compiler?

  • (lack of) standards and features support
  • (lack of) performance optimizations
  • (lack of) warnings about bad code
  • (lack of) descriptive error messages
  • from this perspective:
    • the addition of Clang/LLVM as a production-ready C/C++ compiler to the FOSS ecosystem a decade ago did great things for code quality and
    • provided vendors with a common and reliable platform to build custom hardware and software-dependant optimizations on top

Thank you for your attention

Author: Vedran Miletić
